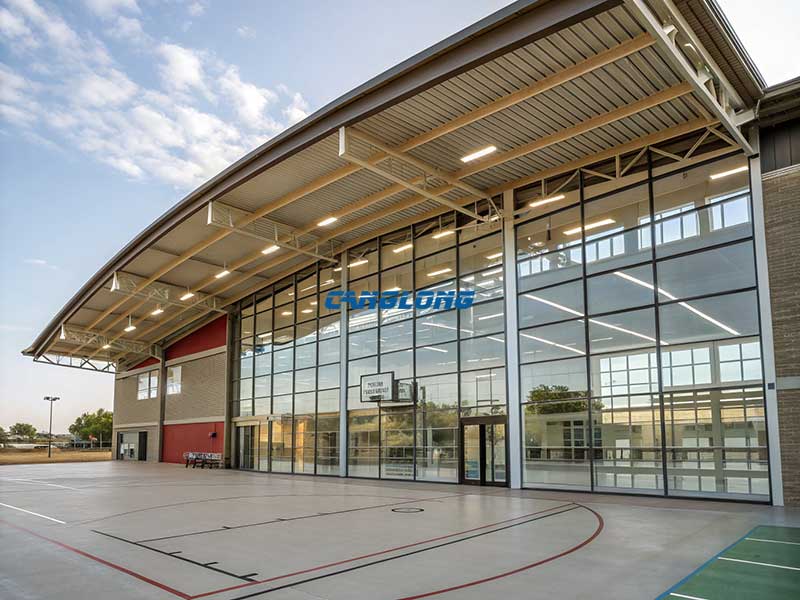

When planning a multi-purpose indoor sports facility, architects and project owners face a unique set of structural challenges: the demand for column-free spans exceeding 40 meters, clear heights above 15 meters for ball sports and gymnastics, strict acoustic and lighting requirements, and the pressure to deliver within tight construction schedules. A portal frame sports hall built with pre-engineered steel structure technology addresses all of these constraints in a single, integrated solution.

At Canglong Group, we design and deliver steel structure sports hall building kits that combine hot-dip galvanized Q355B portal frames with insulated envelope systems, engineered for wind loads, snow loads, and seismic conditions across global climate zones — from hurricane-prone coastal regions in the Americas to high-snow-load areas in Northern Europe and earthquake zones in Southeast Asia.

Key Challenges in Sports Hall Construction — And How Steel Portal Frames Solve Them

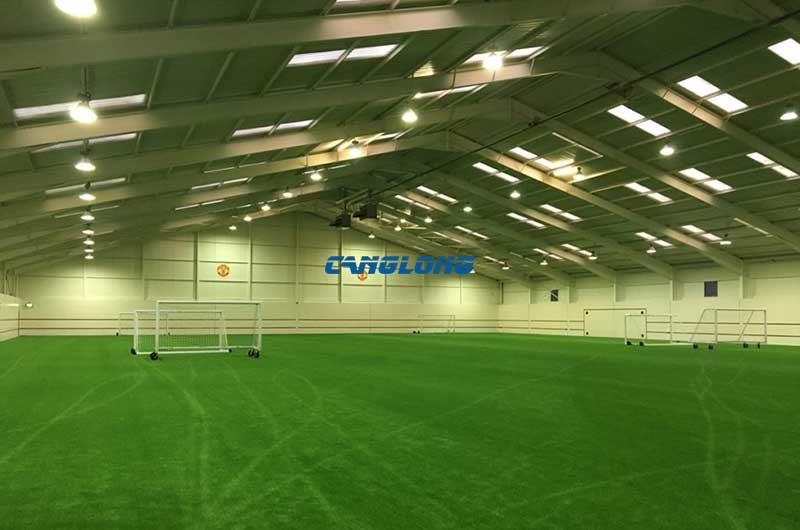

1. Column-Free Space for Uninterrupted Play

Traditional concrete or masonry structures require intermediate columns to achieve spans beyond 15–20 meters, creating sight-line obstructions and safety hazards for fast-moving sports. A steel portal frame sports hall uses rigid moment-resisting connections between columns and rafters to transfer lateral loads efficiently, enabling single spans of 40–80 meters without internal supports. This open floor plan accommodates full-size basketball courts, volleyball courts, indoor football pitches, and gymnastics apparatus zones within a single envelope.

2. Clear Height for Diverse Sporting Activities

Competition-grade badminton, volleyball, and basketball all require minimum clear heights of 9–15 meters. Our prefab sports hall portal frames are designed with eave heights starting at 6 meters and ridge heights exceeding 15 meters, ensuring compliance with international sports facility standards while allowing overhead lighting, scoreboard, and HVAC ductwork installation without encroaching on the playing zone.

3. Rapid Construction to Meet School Term or Tournament Deadlines

Educational institutions and municipal governments often need facilities operational before the start of a school term or sports season. Pre-engineered steel components — factory-cut, welded, and hot-dip galvanized — arrive on site ready for bolted assembly. A 5,000 m² steel structure indoor sports facility can progress from foundation to weather-tight envelope in 60–90 days, compared to 6–12 months for conventional construction.

4. Climate Resilience Across Global Markets

Sports halls must remain safe and functional under extreme weather. Our frame systems are engineered to site-specific loads: wind resistance up to 170 mph (275 km/h) for coastal and plains regions, snow loads accounting for ASCE 7-22 rain-on-snow surcharge requirements, and seismic detailing per local building codes. The lightweight steel roof reduces lateral seismic forces compared to concrete alternatives, improving safety in earthquake-prone areas.

Integrated Building Solution: Product Combination for Portal Frame Sports Halls

A high-performance sports hall is not defined by its frame alone. We provide a complete building system where each component is selected for its structural, thermal, acoustic, and functional contribution. Here is how we combine products for a typical large-span indoor sports venue:

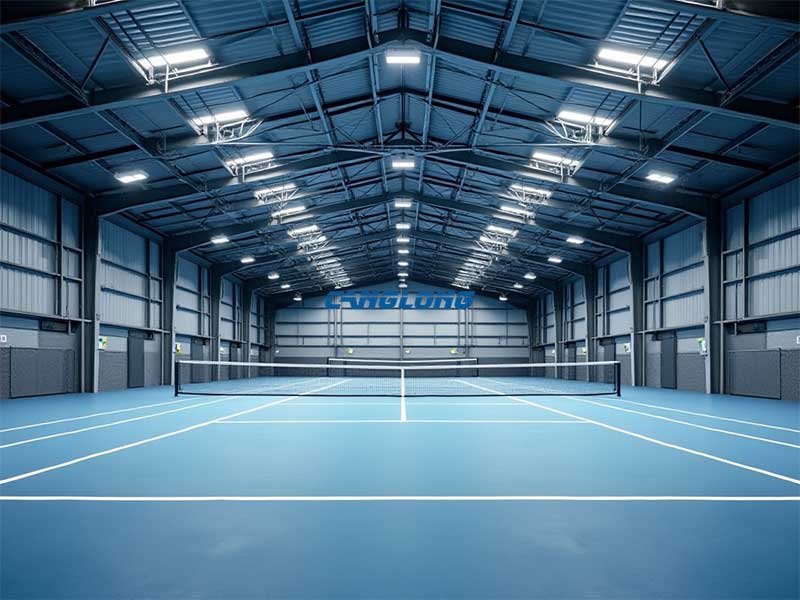

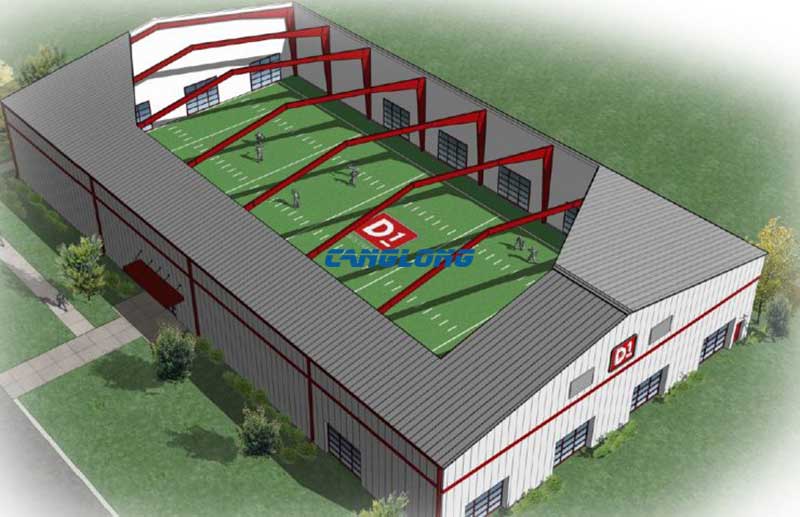

Primary Structure: Hot-Dip Galvanized Q355B Portal Frame

The backbone of the building is a welded steel portal frame using Q355B high-strength steel with a minimum 275 g/m² hot-dip galvanized coating. Rigid frame action between columns and rafters eliminates the need for interior bracing, preserving the open floor plan. Frame spacing typically ranges from 6–8 meters, with rafter depths optimized for span-to-depth ratios that control deflection under dynamic sports loads and equipment rigging.

Explore our double-slope steel frame systems and single-span warehouse structures that share the same portal frame engineering principles adapted for large clear spans.

Roof System: Insulated Sandwich Panels with Integrated Daylighting

The roof envelope must balance thermal insulation, acoustic dampening, and natural daylight harvesting. We specify PU or mineral wool sandwich panels with thicknesses selected for the local climate — typically 50–100 mm for temperate zones and 100–150 mm for extreme cold or heat. Integrated translucent skylight panels reduce daytime artificial lighting demand by up to 80%, while the panel core dampens rain impact noise, maintaining interior sound levels below 45 dB during training sessions.

Wall Enclosure: Durable Cladding with Impact Resistance

Lower wall zones in sports halls are subject to ball impact, equipment contact, and repeated cleaning. We recommend a combination of insulated sandwich panels for the main wall areas and reinforced masonry or impact-rated composite panels for the first 2–3 meters. All cladding is fixed to galvanized steel girts with self-drilling fasteners engineered for the wind pressure zones defined in ASCE 7-22 or Eurocode EN 1991-1-4.

Secondary Systems: Ventilation, Acoustics, and Sports Flooring Interface

While Canglong Group specializes in the steel shell, we coordinate with MEP consultants to ensure the structural frame accommodates:

• Low-velocity ventilation ducts suspended from purlins, sized to maintain air exchange rates of 4–6 ACH for occupant comfort
• Acoustic baffle clouds or perforated metal ceiling liners attached to the bottom flange of rafters to control reverberation time (target RT60 < 2.0 s for multi-use halls)
• Sports flooring anchorage — the portal frame foundation includes embedded plates and leveling tolerances (< 3 mm over 3 m) to support sprung hardwood or synthetic sports surfaces

Regional Design Standards and Load Considerations

Every portal frame sports hall we deliver is engineered to the building code and environmental loads of its destination country. Our design team references the following standards based on project location:

All structural calculations, connection details, and fabrication drawings are stamped by licensed engineers familiar with the destination jurisdiction. We also provide third-party review support to expedite local authority approval.

Versatility in Action: Sports Hall Applications by Use Case

The same portal frame structural system adapts to widely different program requirements through variations in span, height, cladding, and interior fit-out:

Whether you need a single-court steel structure basketball court, a multi-field indoor football facility, or a competition-grade volleyball arena, the portal frame system scales to your program. For integrated training complexes, see our steel training center building solutions.

Construction & Delivery Advantages of Prefab Sports Halls

Beyond the structural benefits, the pre-engineered delivery model offers tangible project-level advantages:

• Factory Precision: All primary and secondary steel is cut, welded, drilled, and surface-treated under controlled conditions. Component tolerances are held to < 2 mm, ensuring bolted field connections fit without rework or site welding.
• Foundation Efficiency: The lightweight steel frame (typically 25–35 kg/m² of steel) reduces foundation loads compared to concrete construction, allowing simpler spread footings or pile caps rather than massive mat foundations — particularly valuable on poor soils or constrained urban sites.
• Year-Round Construction: Because the structural shell is erected with bolted connections and the envelope is installed as prefabricated panels, weather delays are minimized. Enclosure can be achieved in 30–45 days after foundation completion, allowing interior trades to proceed regardless of exterior conditions.
• Future Extension: Portal frames are inherently modular. End-wall frames can be designed for future longitudinal extension by simply adding more bays, protecting the initial capital investment as program needs grow.

Related Solutions & Reference Projects

This portal frame system shares engineering DNA with other large-span and high-clearance buildings in our portfolio. Explore these related solutions for additional context on frame capacity, cladding options, and international delivery experience:

• Large-Span Product Systems: Aircraft Hangar Steel Structures — engineered for 30–60 m clear spans with similar portal frame technology, demonstrating our capacity for oversized single-span buildings.
• Related Application Pages: Steel Structure Basketball Court Solutions | Indoor Football Field Buildings | Volleyball Arena Construction | Training Center Buildings
• International Project Experience: USA Commercial Building Project | UK Large-Span Warehouse | Philippines Industrial Facility — all delivered with code-compliant engineering for wind, seismic, and snow loads.

Have a completed sports hall project you’d like us to feature? We are continuously expanding our case study library. Submit your project details for inclusion.

Frequently Asked Questions About Portal Frame Sports Halls

What is the maximum clear span achievable with a steel portal frame sports hall?

Standard portal frame configurations achieve 40–60 meters economically. With trussed or hybrid rigid frames, spans can extend to 80 meters or more. For spans beyond 60 meters, we typically introduce intermediate columns in non-playing zones (e.g., along spectator seating lines) or switch to space frame or truss systems while maintaining the portal frame aesthetic.

How does a portal frame sports hall compare in cost to conventional concrete construction?

For clear spans above 20 meters, pre-engineered steel portal frames are typically 20–30% more cost-effective than reinforced concrete alternatives on a total-installed-cost basis. Savings come from reduced foundation loads, faster construction schedules (lower general conditions and financing costs), and minimal maintenance over the 50-year design life.

What sports flooring systems are compatible with a steel portal frame foundation?

Virtually all modern sports flooring — sprung hardwood, synthetic polyurethane, rubber, and modular tile systems — can be installed over a steel building’s concrete slab-on-grade or raised floor. The key requirement is that the structural slab be level to within ±3 mm over 3 meters and include a vapor barrier. We coordinate slab specifications with your flooring contractor during the design phase.

Can the same sports hall structure be used for non-sport events like exhibitions or emergency shelters?

Yes. The column-free open plan and high clear height make portal frame sports halls highly adaptable. Many of our clients design sports halls with dual-use capability: daily training use with retractable bleachers, and full-floor conversion for community events, trade exhibitions, or disaster response by removing temporary partitions and deploying portable flooring.

What wind and snow loads can you engineer for?

We engineer to site-specific loads rather than generic ratings. Our standard design envelope covers wind speeds up to 170 mph (275 km/h) and ground snow loads up to 210 kg/m² (43 psf). For extreme environments — such as high-altitude ski-resort training facilities or coastal hurricane zones — we upgrade member sections, connection capacities, and fastening schedules accordingly.

Do you provide design and engineering for international projects?

Yes. Canglong Group operates as an EPC turnkey provider for international markets. We produce structural calculations and fabrication drawings compliant with AISC, Eurocode, AS/NZS, or local standards, stamped by licensed structural engineers. We also supply complete building kits (steel frame, cladding, fasteners, and trim) shipped in 40-foot containers with element numbering and assembly diagrams for efficient on-site erection.

How long does it take to design, manufacture, and deliver a portal frame sports hall?

Typical timelines are: 2–4 weeks for conceptual design and quotation; 4–6 weeks for detailed engineering and drawing approval; 6–8 weeks for fabrication and surface treatment; and 2–4 weeks for ocean freight (depending on destination). On-site assembly of a 5,000 m² hall takes 60–90 days with a crew of 8–12 workers, assuming foundation readiness.
