Canada Prefab Loods

Canglong Group successfully completed a customized storage warehouse project in Winnipeg, Manitoba, Canada, providing a durable prefabricated steel building solution designed for cold climate conditions.

With a total area of 155㎡ (approximately 1,668 square feet), this warehouse was engineered to meet the requirements of the Canadian market, including winter weather conditions, snow loads, and high insulation standards.

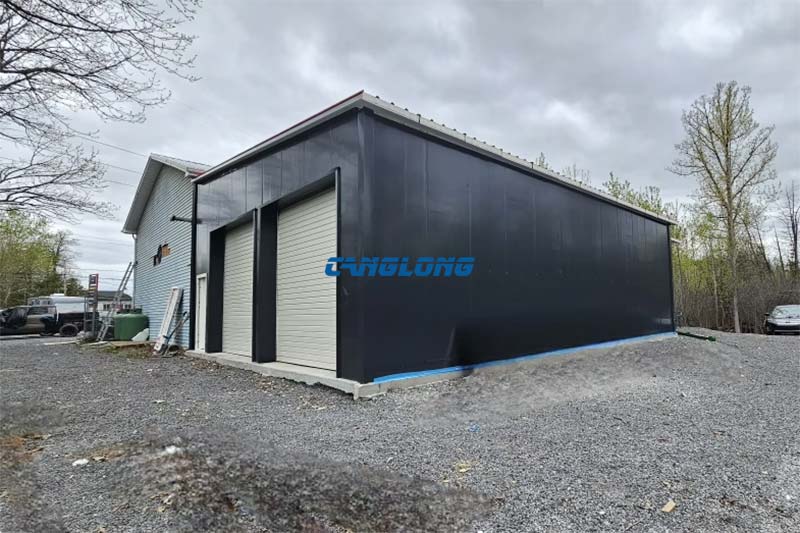

The project combines an efficient single-slope roof design, a strong steel frame structure, and a high-performance PU sandwich panel enclosure system, creating a practical storage building with excellent durability and energy efficiency.

Project Overview

Single-Slope Warehouse Design for Snow and Cold Climate Conditions

Located in Winnipeg, Manitoba, this warehouse project required careful consideration of cold weather conditions, including heavy snowfall and low winter temperatures.

Canglong Group adopted a single-slope roof design to improve drainage efficiency and help reduce snow accumulation pressure on the roof structure. This design provides a practical solution for regions where winter weather can significantly affect building performance.

Compared with traditional construction methods, prefabricated steel warehouses offer advantages in construction speed, structural flexibility, and long-term maintenance efficiency, making them suitable for agricultural, commercial, and industrial storage applications.

Strong Steel Frame Structure for Reliable Performance

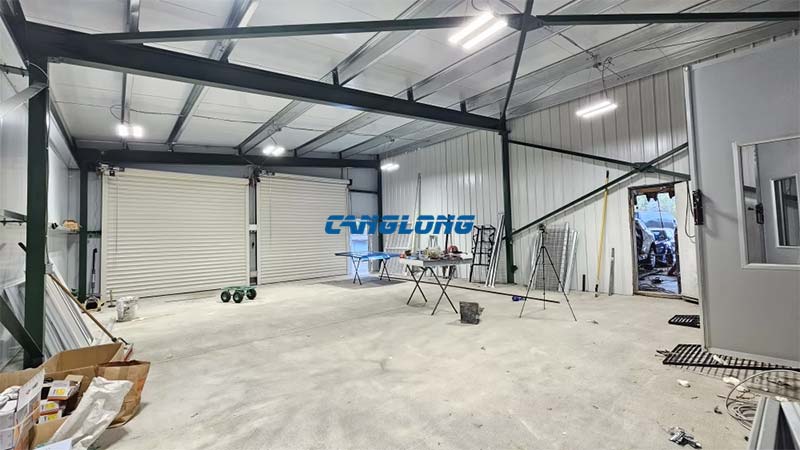

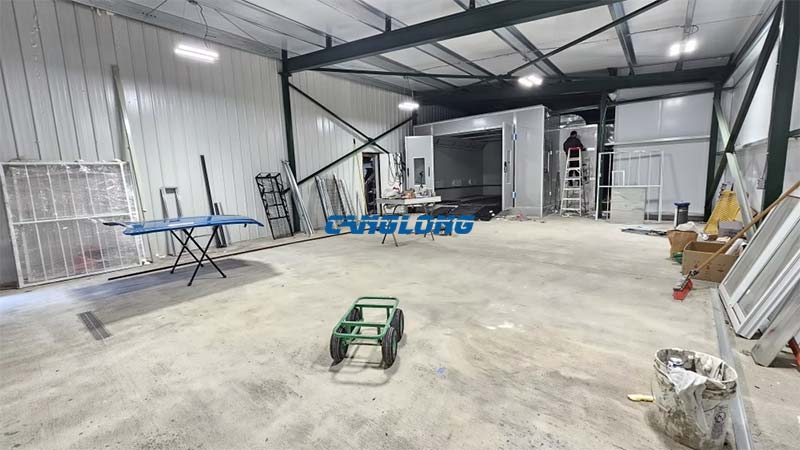

The main structural system uses H-shaped steel beams and columns, providing excellent load-bearing capacity and stability for the warehouse.

The secondary structure adopts C-shaped steel purlins for roof and wall support, creating a lightweight but reliable framework for the building envelope.

The steel structure was designed to withstand local environmental requirements, including wind pressure and snow loads commonly experienced in Canada’s cold regions.

PU Sandwich Panels Improving Insulation Efficiency

One of the key features of this storage warehouse is the use of PU sandwich panels for the wall and roof enclosure system.

The high-performance insulation material provides excellent thermal resistance and airtightness, helping reduce heat loss during winter and improving indoor temperature stability.

For warehouse buildings in North America, an efficient insulation system is essential for reducing heating costs and maintaining a comfortable working environment throughout seasonal temperature changes.

Functional Design for Efficient Storage Operations

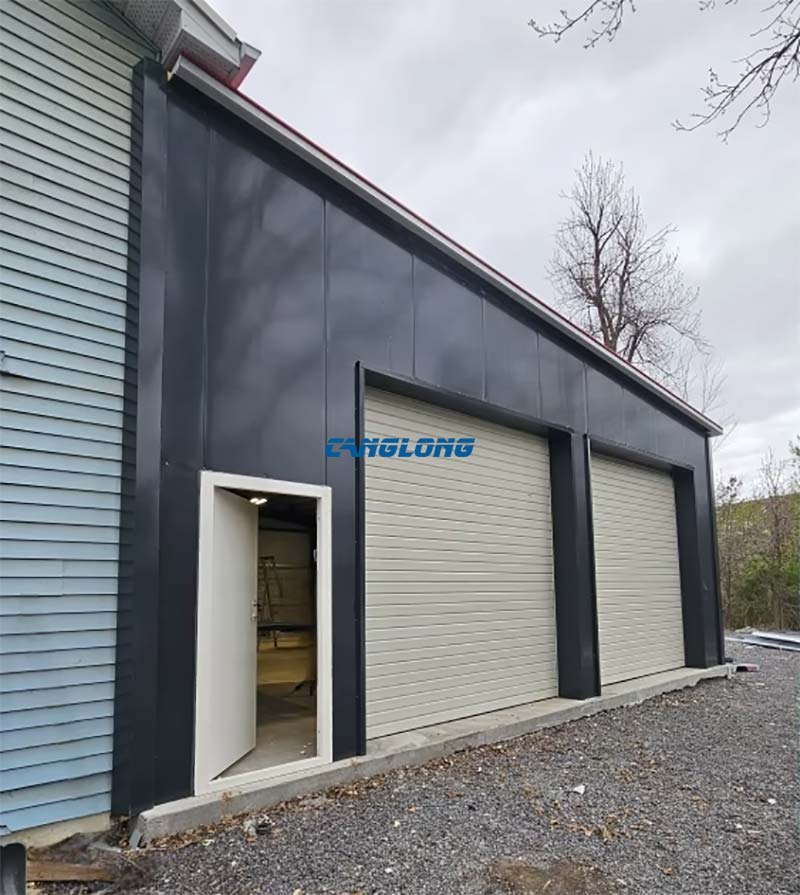

The warehouse was designed with practical access requirements in mind. The building includes two large roller shutter doors for vehicle loading and unloading, along with a separate personnel access door for daily operation.

This layout improves logistics efficiency while providing convenient access for warehouse users, making the building suitable for modern storage activities.

Customized Warehouse Solutions from Canglong Group

Different regions require different warehouse designs based on climate, regulations, and operational requirements. Canglong Group provides customized

steel warehouse solutions

covering structural design, fabrication, enclosure systems, and project support.

From compact storage buildings to large industrial warehouses, Canglong Group develops prefabricated steel structures that are adapted to local environmental conditions and customer needs.

Canglong Group – Steel Warehouse Manufacturer Serving North America

With international project experience and professional steel fabrication capabilities, Canglong Group provides complete warehouse building solutions for customers worldwide.

The company combines engineering design, manufacturing quality control, and project coordination to deliver reliable steel buildings for different applications and climates.

This Canada storage warehouse project demonstrates Canglong Group’s ability to provide customized steel structures that meet demanding cold-weather requirements and modern building expectations.
