How to build a steel structure car repair shop in Congo?

By

Canglong Group

How to build a steel structure car repair shop in Congo?

To efficiently establish a modern car repair shop in the Congo, utilizing fully prefabricated steel structure modules is the best way to overcome the obstacles of weak local infrastructure and labor shortages.

The following is an analysis of the core configuration and one-stop construction solution for this car repair shop project.

Project Overview

This project, addressing the auto repair shop’s requirements for large spans, high headroom, and heavy lifting, underwent targeted structural optimization:

Main Structure: A classic portal frame design is adopted, with no internal columns, ensuring unobstructed access for car lifts, inspection lines, and vehicle movement routes.

Crane Configuration: The beam-column joints are reinforced, and a gantry crane system is provided. To support the dynamic loads of the crane, Q355B H-beams are selected as the core material for the beams and columns. This high-strength low-alloy steel is stronger than ordinary steel, ensuring structural stability during gantry crane operations while reducing weight.

Secondary Structural Support: Purlins are made of Q235B C-shaped steel, digitally prefabricated and punched to ensure the mechanical rigidity of the roof and walls.

Portal Frame Design

Enclosure System

In response to the tropical climate of Congo, the enclosure system of car repair shop has achieved a balance between economy and comfort:

• Roofing System: Utilizes 840-type single-layer roof  metal sheet. These panels feature a steep drainage slope, and combined with the standard high-capacity gutters and downpipes, they can easily withstand the heavy rains of the Congolese rainy season.
• Wall System: Employs 900-type color steel plate, complemented by elegant eaves edging, providing both rain and rust protection while enhancing the overall industrial aesthetic of the building.
• Internal Partitions: Office areas and tool sheds utilize 50mm thick EPS sandwich panels. EPS panels are lightweight, quick to install, and possess excellent sound insulation properties, effectively isolating high-decibel noise from repair areas.
• Natural Lighting: Strategically placed FRP (fiberglass reinforced plastic) skylights on the roof maximize the use of abundant tropical sunlight, significantly reducing lighting costs during daytime vehicle repairs.
• Access Control: Standard high-strength roller shutter doors are included, saving space when open and facilitating the entry and exit of various large vehicles.

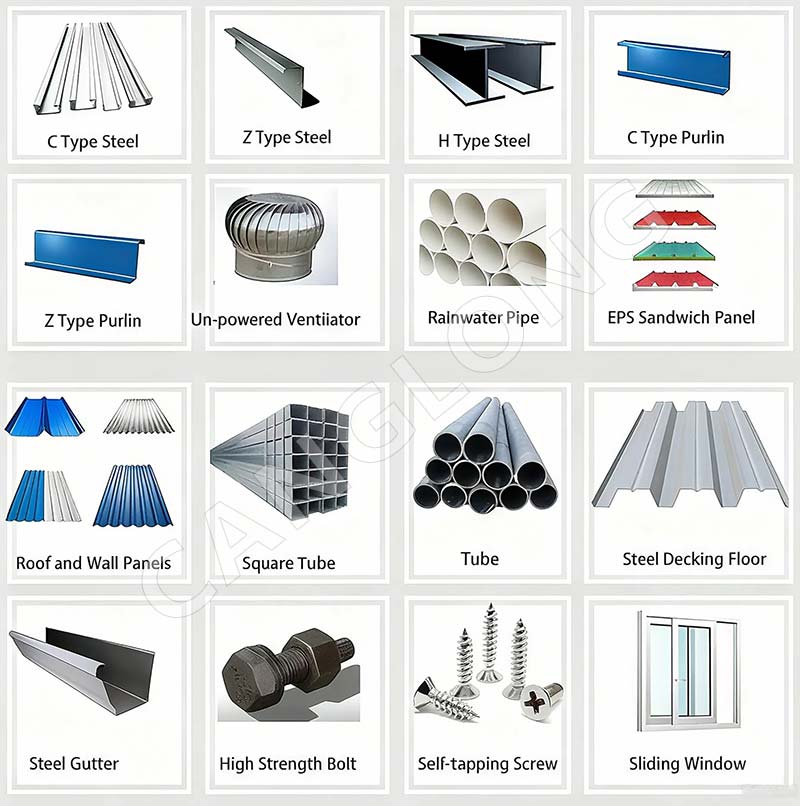

Car Repair Shop Steel Structure Kit Materials

Canglong Group’s One-Stop Overseas Solution

Building a factory in Congo hinges on the integrity of the supply chain. Canglong Group provide a closed-loop service from our Chinese factory to the Congolese construction site.

1. 100% Factory Prefabrication, Zero On-Site Welding

All H-beams, C-beams, and connection nodes are welded and precision-punched using automated robots in a digital factory. Upon arrival in Congo, workers simply assemble everything with bolts according to 3D drawings. This not only avoids the problem of a shortage of local skilled welders but also shortens the construction time by more than 50%.

2. Complete Kit Package, Eliminating the Risk of Missing Parts

We supply not only the framework but also:

• Drainage System: Gutters, drain pipes, and their supporting supports.
• Edging Accessories: Eaves edging, corner edging, and other flashing components, ensuring 100% leak-proof construction.
• Fastening System: All high-strength bolts, self-tapping screws, and waterproof sealing strips are included in the package.

3. Cross-border Logistics and Customs Clearance Management

Canglong Group possesses extensive experience in African logistics. We handle international booking and transportation, and provide detailed guidance on customs clearance and documentation. All materials are scientifically loaded into 40HQ containers according to the installation sequence, ensuring the goods remain intact after traversing tens of thousands of nautical miles.

Steel Structure Kit Packaged and Shipped

Conclusion

Through the Q355B high-strength frame, 100% prefabricated components, and one-stop cross-border delivery, your car repair shop in Congo will be transformed from blueprint to reality in the fastest possible time. This is not just a building, but a modern industrial asset with efficient turnover and resilience against risks.
