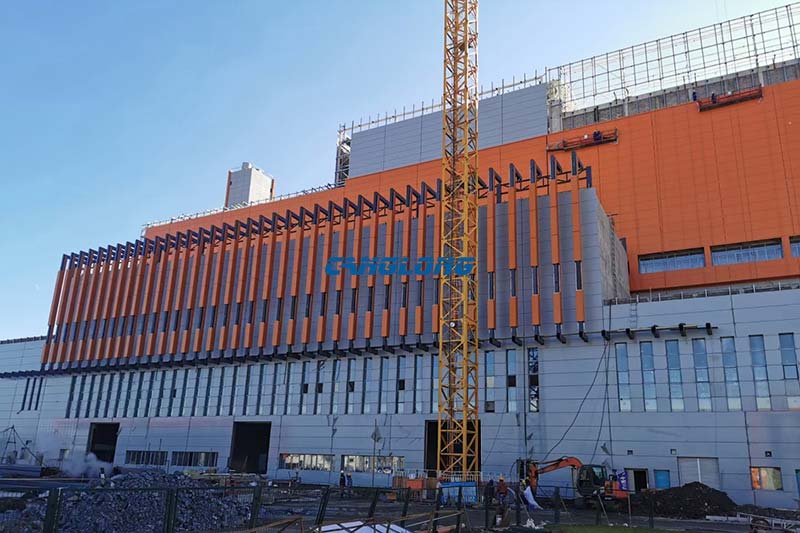

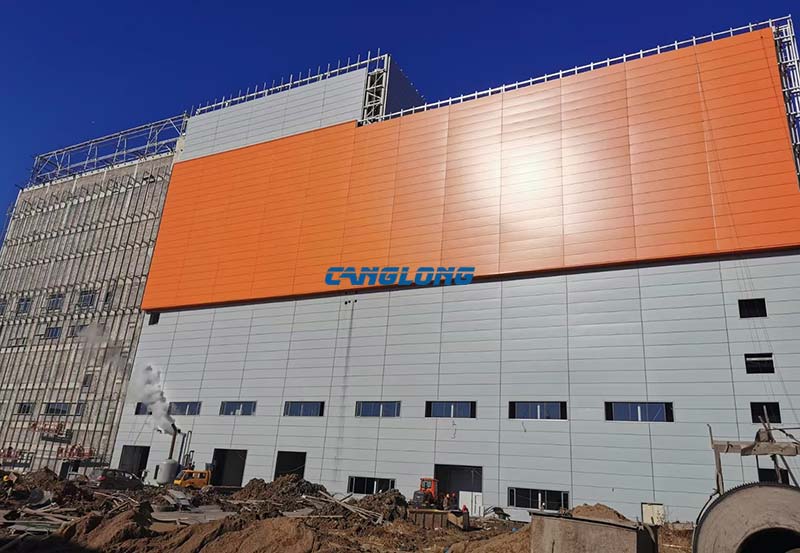

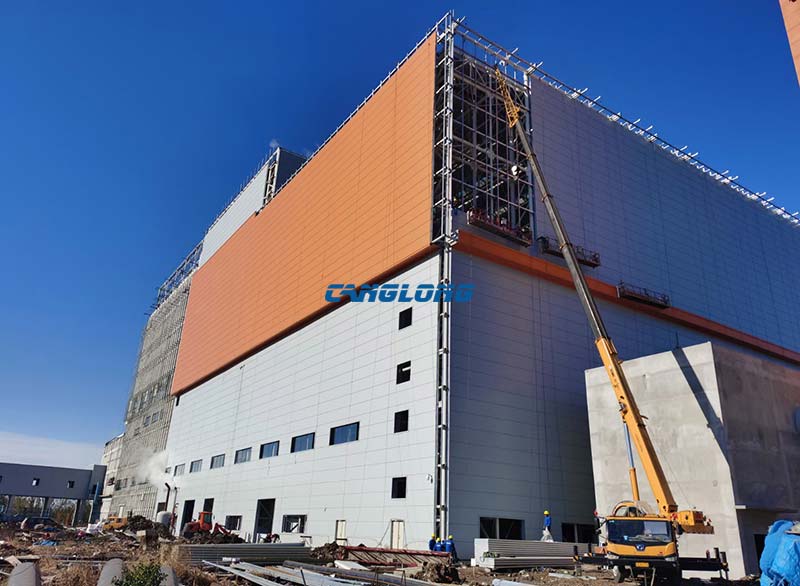

Indonesia Power Plant

1. High-Performance Enclosure System

Polyurethane Sandwich Panel Walls (PU Sandwich Panels, 100mm Thick):

• Fireproof Grade A (GB 8624 Standard).
• Thermal conductivity is 0.022W/(m·K), achieving 30% energy savings compared to traditional panel materials.
• Double-sided 0.5mm galvanized steel panels have passed the ISO 9227 2000-hour salt spray test.

Airtight Joint Treatment: Dual-pass sealing with EPDM rubber sealing strips and structural adhesive ensures a positive pressure environment within the plant (meeting cleanliness requirements for power generation equipment).

2. Heavy-Duty Steel Structure System

• Main Frame: Q355B high-strength H-section steel (specifications: H400×400×12×20).
• Flexural bearing capacity ≥1850 kN·m.
• Complies with AWS D1.1 American Standard Welding Specification.

Seismic Design:

• Joints utilize energy-dissipating steel braces (BRBs).
• Meets the seismic requirements of Indonesia’s SNI 1726-2019 (design intensity 8).

3. Power Generation Facility Adaptive Design

Equipment Foundation Pre-embedded:

• 30 anchor holes for large equipment are reserved (tolerance ±2mm).
• Reinforcement ratio of the concrete foundation is ≥1.2%.

Optimized Operation and Maintenance Access:

• Main access width is 4.5m (accommodating the passage of hoisting equipment).
• Roof maintenance runway load ≥ 3kN/m².
