Canglong Group supplied a 1,000 m² steel farm warehouse for an agricultural customer in Chile. The building was designed to provide flexible covered space for grain storage, agricultural machinery and farm tools, combining a clear-span layout with a practical double-slope roof and a durable steel framing system.

Project Overview

Item Project Details
Project Type Steel Farm Warehouse
Location Chile
Building Area 1,000 m²
Building Dimensions 50 m × 20 m
Eaves Height 6.6 m
Roof Height 8.53 m
Roof Design Double-slope roof
Main Frame H-section steel columns and beams
Purlins C-section steel
Enclosure Green single-color steel panels
Primary Applications Grain, agricultural machinery and tool storage

50 × 20 m Layout for Flexible Farm Storage

The warehouse measures 50 meters long by 20 meters wide, providing approximately 1,000 m² of covered storage space. With a 6.6-meter eaves height and an 8.53-meter roof height, the building provides the clearance required for both bulk agricultural storage and the movement of larger farm equipment.

The long-span layout also allows the owner to organize different storage areas within the same building. Grain, machinery and farm tools can be arranged according to their use without requiring several separate structures, making the warehouse a practical addition to an operating farm.

Double-Slope Roof for Agricultural Storage

The warehouse uses a double-slope roof configuration, a practical choice for a large agricultural building. The sloped roof helps direct rainwater toward the roof edges and provides a straightforward structural arrangement for a 20-meter-wide building.

The roof geometry also creates useful internal height, with the roof reaching 8.53 meters at the ridge. This provides additional vertical clearance for agricultural machinery and improves the usable volume of the warehouse.

For farms looking for a similar steel building for hay or general agricultural storage, see our Hay Shed solution.

H-Section Steel Frame and C-Section Purlins

The primary structural frame uses H-section steel for both the columns and beams. This framing system provides the main load-bearing structure while keeping the interior open and suitable for equipment movement and storage.

C-section steel purlins are used as secondary structural members to support the roof system. The combination of primary H-section framing and secondary C-section members creates a practical steel framing system that can be fabricated and assembled efficiently.

Green Steel Panel Enclosure

Green single-color steel panels were selected for the roof and wall enclosure. The uniform finish gives the warehouse a clean appearance while providing a practical external envelope for an agricultural environment.

For a farm warehouse, the enclosure system has an important functional role: it separates stored grain, machinery and tools from direct exposure to outdoor weather while keeping the building simple to maintain.

Designed for Grain and Agricultural Machinery

This project was not designed for a single storage purpose. The 1,000 m² floor area allows the owner to accommodate several types of agricultural assets within one building, including bulk grain, tractors and other machinery, as well as commonly used farm tools.

The combination of a 20-meter clear width, 6.6-meter eaves height and large open interior makes the building suitable for equipment access as well as conventional storage. This is particularly useful on farms where storage requirements change throughout the agricultural season.

From Structural Design to Material Supply

Canglong Group supported the project through the main stages of steel building delivery, including structural design, material fabrication and the supply of the steel framing, enclosure materials and associated components.

Before fabrication, the building dimensions and structural configuration were coordinated around the intended agricultural use. This helps ensure that the main frame, purlins, roof system, wall panels and foundation connection components work together as one building system rather than as separate materials.

About Canglong Group

Canglong Group is a steel structure manufacturer supplying prefabricated steel buildings for agricultural, industrial and commercial applications. The company provides customized solutions ranging from structural design and steel fabrication to material supply, international logistics and installation guidance.

For agricultural customers, Canglong develops buildings according to the intended use, available site dimensions and local project requirements. Farm warehouses, equipment sheds and other agricultural steel buildings can be configured with different spans, heights, roof systems and enclosure options to suit the project.

Chile Farm Warehouse Installation

A Practical Steel Warehouse for Chilean Farms

This Chile farm warehouse combines a 1,000 m² storage area with a durable steel frame and a straightforward double-slope roof configuration. Its 50 × 20 m footprint provides enough space for grain, agricultural machinery and farm tools, while the 6.6-meter eaves height allows larger equipment to enter and operate within the building.

For agricultural customers planning a new storage building, Canglong Group can develop a steel warehouse around the required building size, storage application and site conditions.

Project Info

Country

Chile

Chile
Project Name

Storage Warehouse

Project Date

2026-3-26

Product Address

Melippia, San Diego Capital Region

Area

1000㎡

Customer Reviews
10.612 Rating
Quality 4.9
Price 4
Design 88
Service 91
Delivery 83
Package 75
Project Details

steel structure kits shipment

No

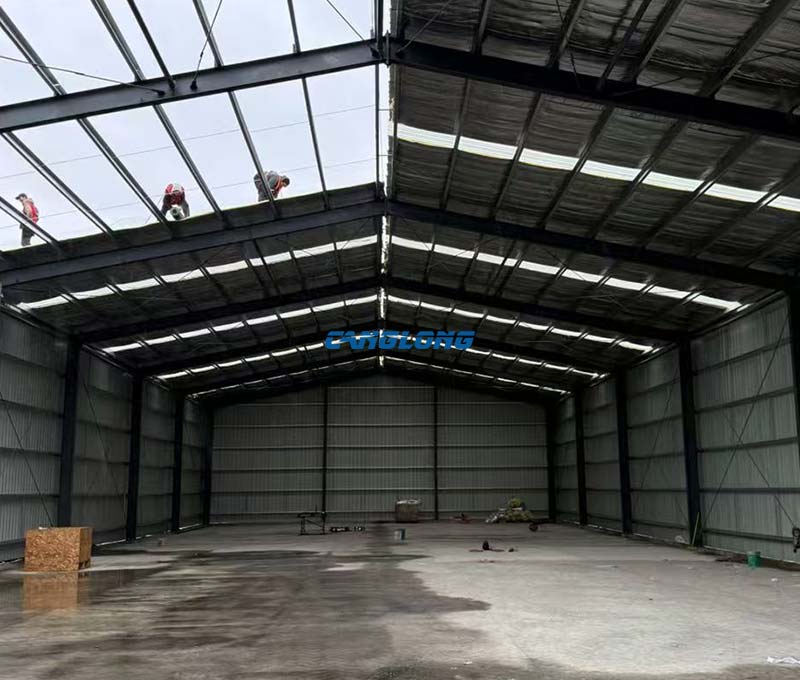

Chile Warehouse Steel Structure Installation

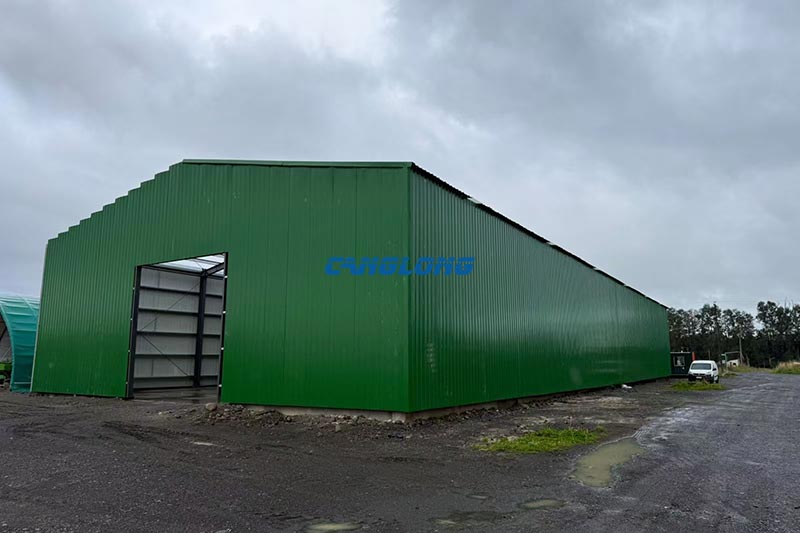

Chile Farm Warehouse Installation
