How to install PU roofing panels?

By

Canglong Group

How to install PU roofing panels?

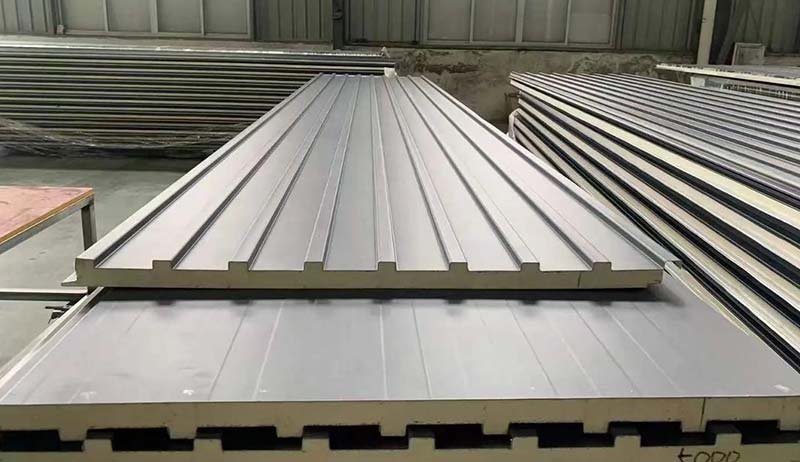

PU roofing panels are widely used in warehouse, factory, and cold storage projects due to their excellent thermal insulation, good sealing, and quick installation. Below is a practical and detailed installation guide applicable to most steel structure roofing projects.

I. Pre-Installation Preparation

Before formal installation, the following preparations must be completed:

1. Material Inspection

• Check if the PU roofing panel specifications and thickness meet the design requirements.
• Check for scratches, deformation, or damage on the surface.
• Check if all accessories (self-tapping screws, waterproof washers, sealant, etc.) are complete.

2. Structural Inspection

• Check if the purlins (C/Z-shaped steel) are installed flat and the spacing is correct.
• Check if the steel structure frame has been properly aligned.
• Check if the roof slope meets the design requirements (recommended ≥5%).

3. Tool Preparation

• Electric screwdriver
• Lifting equipment (such as a crane or winch)
• Sealant gun, measuring tools, etc.

II. PU Roofing Panel Installation Steps

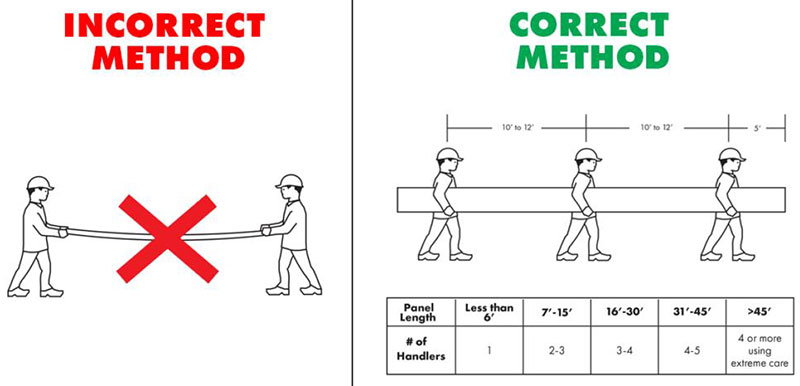

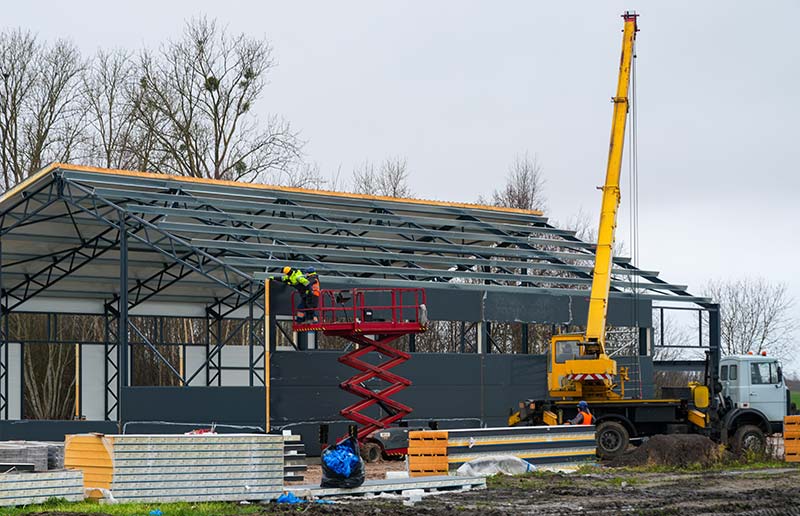

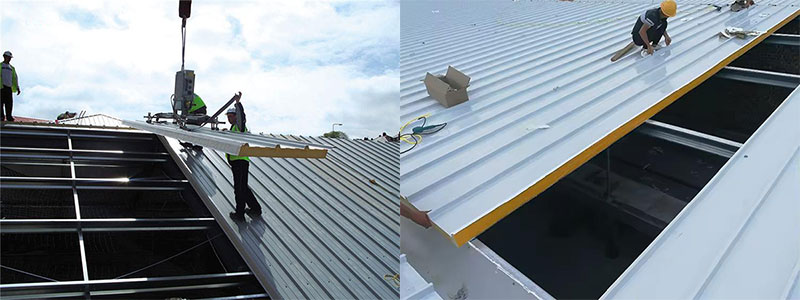

1. Panel Lifting and Placement

• Use lifting equipment to smoothly lift the panels onto the roof.
• Avoid bending or collisions.
• Place the panels neatly on the roof according to the installation sequence.

👉 Note: For long panels, it is recommended to have multiple people work together or use mechanical lifting to prevent deformation.

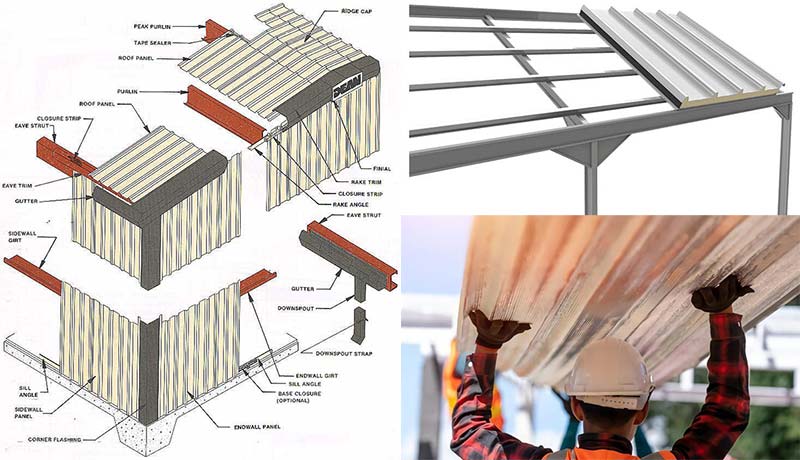

2. First Panel Positioning and Installation

• Start installing the first panel from one side of the eaves.
• Ensure the panel is perpendicular to the purlins and parallel to the eaves.
• Use a string line or laser alignment to ensure overall straightness.

👉 The first panel is crucial, as it affects the alignment of all subsequent panels.

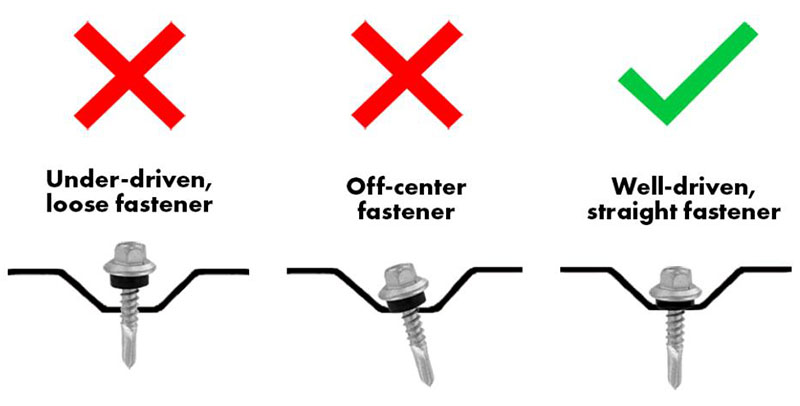

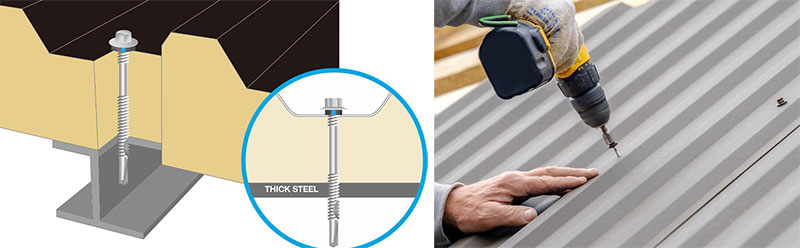

3. Panel Fixing (Self-Tapping Screws)

• Use self-tapping screws with waterproof washers for fixing.
• Screws should be tightened vertically onto the purlins.

The fixing spacing is typically:

• Roof panels: approximately 300–500mm (depending on design)

👉 Note:

• Do not overtighten (to prevent damage to the panels)
• Do not overtighten (to affect waterproofing)

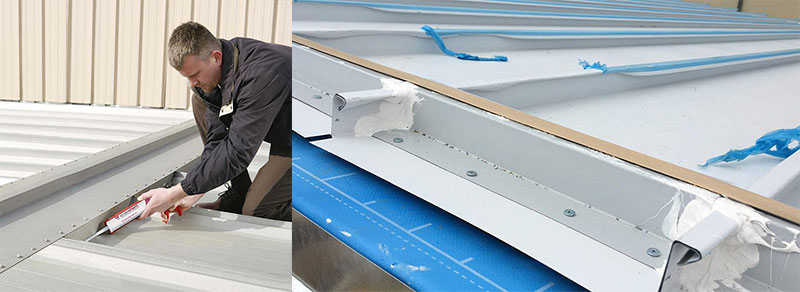

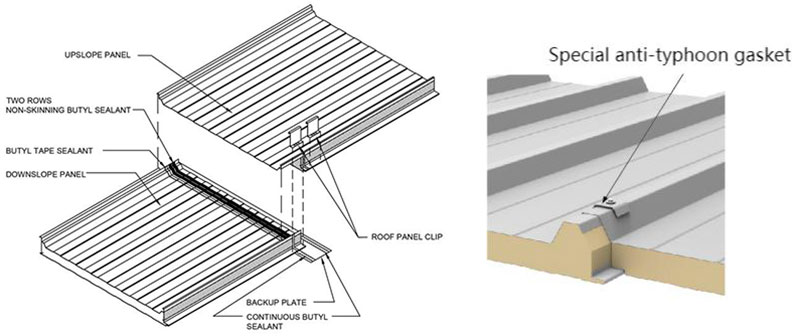

4. Panel Overlap and Sealing

• Adjacent panels are connected using tongue and groove joints
• Overlaps must be tightly fitted
• Apply sealant to the joints if necessary

👉 Key points for waterproofing:

• Tight overlaps
• Seamless joints

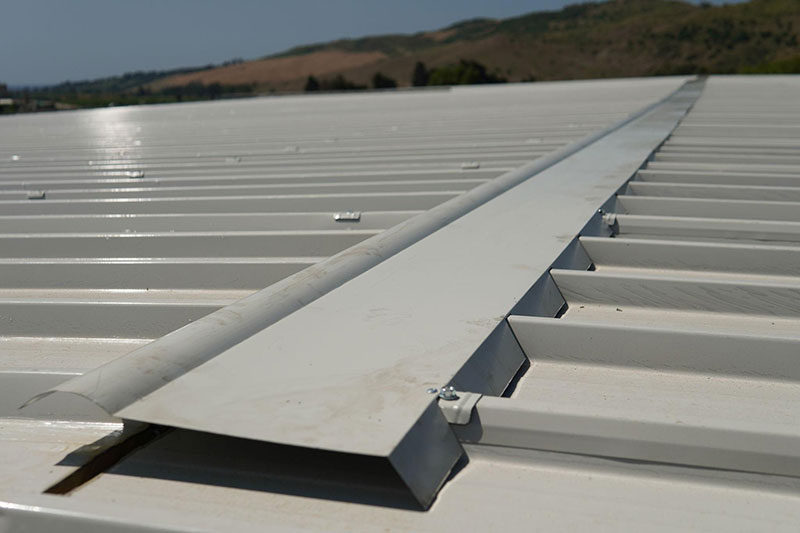

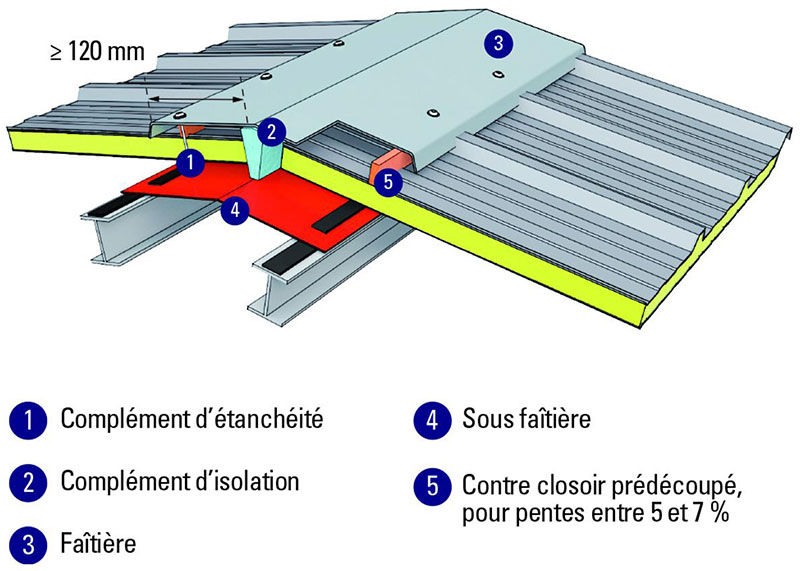

5. Ridge, Edge Finishing, and Accessory Installation

• Install ridge caps
• Install eaves trim and flashing
• Install gutters and drainage system

👉 All edge finishing areas must be properly sealed to prevent water seepage.

III. Key Construction Points

✔ Waterproofing Control

• All screws must have waterproof washers
• Use sealant at overlaps if necessary
• Roof slope must be appropriate

✔ Preventing Deformation

• Do not step on unsecured panels
• Avoid impacts from heavy objects during installation

✔ Corrosion Protection

• Cut edges require touch-up painting
• Avoid scratching the coating

✔ Safe Construction

• Safety harnesses must be worn when working at heights
• Avoid construction in rainy or windy weather

IV. Common Problems and Solutions

V. Why Choose PU Roofing Panels?

• Excellent thermal insulation performance;
• Lightweight and quick installation;
• Good sealing and strong waterproofing performance;
• Suitable for various climates.

Conclusion

Installing PU roofing panels are not complicated, but requires very high attention to detail. From positioning the first panel to tightening each screw, and then to edge finishing and sealing, every step directly affects the waterproofing and lifespan of the roof.

Choosing standardized construction procedures and professional steel structure solutions is essential to ensure your project achieves the following:

👉 Leak-proof, long lifespan, and stable performance

If you have specific project requirements (size, climate, purpose), I can also help you create a more tailored installation plan.
